Re: AGFA Ambi Silette (1957-8)
Posted: Fri Nov 24, 2023 12:37 pm
Finally find the courage to open the top and fix that RF. It was only good between 1 and 3m and then it was a crapshot.
Chris Sherlock videos plus the service manual had enough info and everything seemed OK, but the RF unit was returning to the infinity (resting) very slowly or not at all.
I wanted to avoid opening the top, as the parallax correction and framelines seem to be finicky.

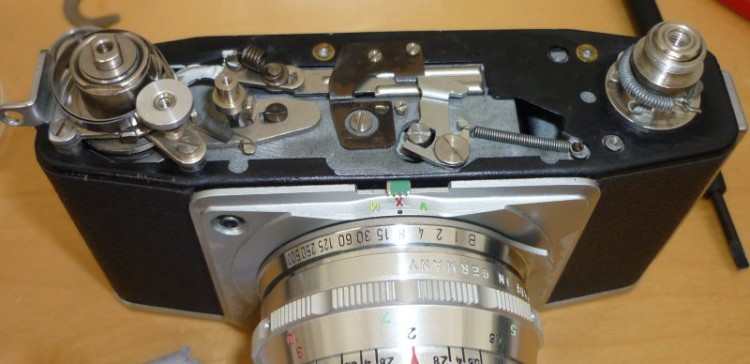

The RF works from the bottom and is something like this
I moved the arm many times and it was not helping.
I used a drop of cleaner in the pivot and that seemed to lose the mechanism, cleaned all residue and let it dry. It was a bit better but not great
I repeated the treatment a few times until it was fine once dry (~24h between treatments)
I used a bit of teflon-doped oil in the pivot and it'd been fine for a few days.
The Silver arm with the long spring is the driver of the RF.
Chris Sherlock videos plus the service manual had enough info and everything seemed OK, but the RF unit was returning to the infinity (resting) very slowly or not at all.
I wanted to avoid opening the top, as the parallax correction and framelines seem to be finicky.
The RF works from the bottom and is something like this
I used a drop of cleaner in the pivot and that seemed to lose the mechanism, cleaned all residue and let it dry. It was a bit better but not great
I repeated the treatment a few times until it was fine once dry (~24h between treatments)
I used a bit of teflon-doped oil in the pivot and it'd been fine for a few days.
The Silver arm with the long spring is the driver of the RF.
titrisol wrote: ↑Tue Oct 04, 2022 12:33 pmCompurs are easy to maintain, the type I was working but 1 was sluggish. I cleaned and lubed that shutter and is within 1/3 stop
Type II, needs a cleaning, and RF adjustment. I'll do that in the wintertime
Luckily LearnCameraRepair has the Ambi Silette parts and service manual which helped me a lot
